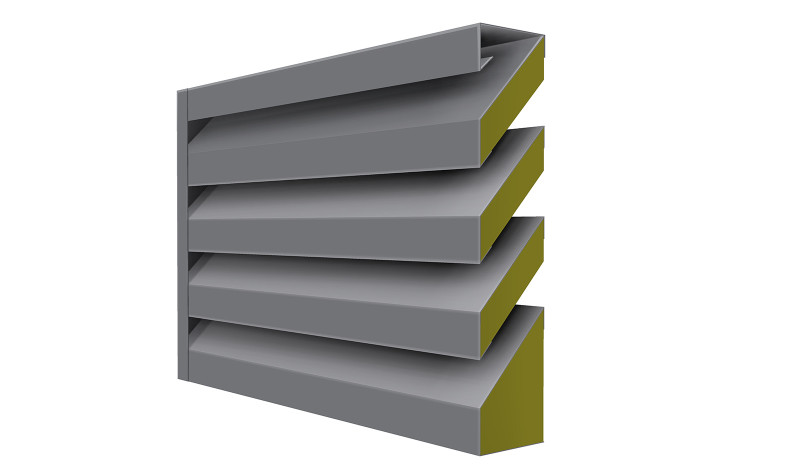

MIGUSHIELD A6457 / 6"Acoustical Louver

Protects

against noise entering the building

Maintains

the airflow so that only fresh air can pass into the building

Resists

further elements such as water, wind and dust

Embellishes

buildings as an architectural feature

Preserves

the mechanical and technical equipment of a building


Standard version

Standard versionLouver TypeLouver DepthBlade AnglePercentage Free Area
A6457 / 6" Acoustical LouverMullion or Continuous Line6” (152 mm)45°27.5 %

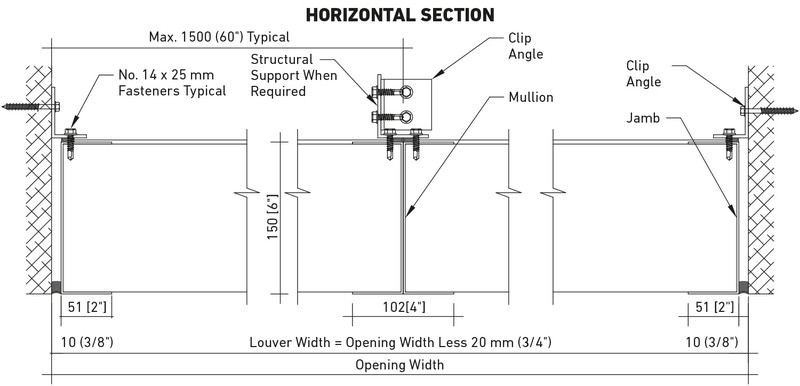

System Description
Extruded aluminum construction; frame with channel profile; corner joints mitered and mechanically fastened, with continuous recessed channel each side.

Material
Head, sill and mullion to be fabricated from 6063-T66 extrusion alloy. Head, sill, jamb, and mullions will be 0.079“ (2.00 mm) thick, blades will be 0.079“ (2.00 mm). Mechanical fixing using stainless steel or aluminum fasteners.

Structural Design
Structural supports shall be designed and furnished by the louver manufacturer to carry a wind load of not less than 20 psf. (kPa). (Note: If this paragraph is omitted or if the design wind load is not specified, the louvers will be manufactured in self-supporting units up to a maximum of 2 000 mm wide by 2 000 mm high. Any additional structural supports required to adequately secure these units within the opening shall be the responsibility of others.)

Finishes
PE-SDF, PVDF, Anodize after fabrication

Options & Accessorries
Bird Screen, Insect Mesh
